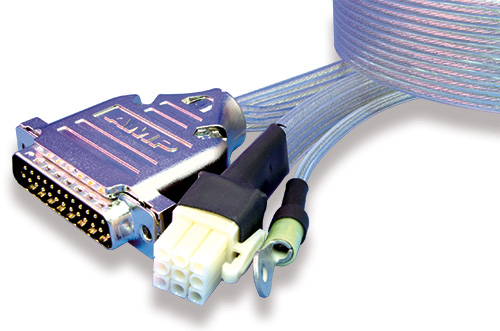

Hi-Flex Unshielded Cable

Hi-Flex Unshielded Cable
  • Ideal for High Performance Power & Control Applications
  • Ultra Flexible Cable for Confined Area and Continuous Motion
  • 4 AWG - 28 AWG Conductors Available in 2 - 12 Conductors
  • Low Smoke/Zero Halogen (LSZH)

Cicoil’s line of Hi-Flex Unshielded Cables provides the advantages of all Cicoil flexible cables in a standard, low-cost package. Ultra-flexible, finely stranded wire conductors are used for maximum flexibility and long life in dynamic, flexing applications. Cicoil’s patented extrusion process encapsulates the wire conductors in a crystal clear, flexible, yet extremely durable Flexx-Sil™ insulation.

Single-Conductor versions of this cable are here»

Applications Aerospace, Festoon Systems, Robotics, Medical, Oil Drilling, Packaging

Catalog Page
Hi-Flex Unshielded Cable

  • Narrow Your Selection

    Amp Rating
    Volts DC
    No. of Conductors
    Amp Rating
    Volts DC
    No. of Conductors
    Part Number
    5
    12K
    2
    969M101-28-2
    Details

    Bulk Cable

    • Amp Rating: 5
    • Volts DC: 12K
    • No. of Conductors: 2
    • Conductor Gauge: 28 AWG
    • A - Width (inches): 0.13
    • B - Height (inches): 0.08
    969M101-28-2
    Part Numbers Order Through
    969M101-28-2 Digi-Key

    Complete Assemblies

    Signal (J1): 25-Pos D-SUB - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 969M101-28-2
    Cable Length (ft) Part Numbers Order Through
    3 969M101-28-2-CA003 Cicoil
    6 969M101-28-2-CA006 Cicoil
    12 969M101-28-2-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    5
    12K
    3
    969M101-28-3
    Details

    Bulk Cable

    • Amp Rating: 5
    • Volts DC: 12K
    • No. of Conductors: 3
    • Conductor Gauge: 28 AWG
    • A - Width (inches): 0.18
    • B - Height (inches): 0.08
    969M101-28-3
    Part Numbers Order Through
    969M101-28-3 Digi-Key

    Complete Assemblies

    Signal (J1): 25-Pos D-SUB - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 969M101-28-3
    Cable Length (ft) Part Numbers Order Through
    3 969M101-28-3-CA003 Cicoil
    6 969M101-28-3-CA006 Cicoil
    12 969M101-28-3-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    5
    12K
    4
    969M101-28-4
    Details

    Bulk Cable

    • Amp Rating: 5
    • Volts DC: 12K
    • No. of Conductors: 4
    • Conductor Gauge: 28 AWG
    • A - Width (inches): 0.23
    • B - Height (inches): 0.08
    969M101-28-4
    Part Numbers Order Through
    969M101-28-4 Digi-Key

    Complete Assemblies

    Signal (J1): 25-Pos D-SUB - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 969M101-28-4
    Cable Length (ft) Part Numbers Order Through
    3 969M101-28-4-CA003 Cicoil
    6 969M101-28-4-CA006 Cicoil
    12 969M101-28-4-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    5
    12K
    6
    969M101-28-6
    Details

    Bulk Cable

    • Amp Rating: 5
    • Volts DC: 12K
    • No. of Conductors: 6
    • Conductor Gauge: 28 AWG
    • A - Width (inches): 0.33
    • B - Height (inches): 0.08
    969M101-28-6
    Part Numbers Order Through
    969M101-28-6 Digi-Key

    Complete Assemblies

    Signal (J1): 25-Pos D-SUB - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 969M101-28-6
    Cable Length (ft) Part Numbers Order Through
    3 969M101-28-6-CA003 Cicoil
    6 969M101-28-6-CA006 Cicoil
    12 969M101-28-6-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    5
    12K
    8
    969M101-28-8
    Details

    Bulk Cable

    • Amp Rating: 5
    • Volts DC: 12K
    • No. of Conductors: 8
    • Conductor Gauge: 28 AWG
    • A - Width (inches): 0.43
    • B - Height (inches): 0.08
    969M101-28-8
    Part Numbers Order Through
    969M101-28-8 Digi-Key

    Complete Assemblies

    Signal (J1): 25-Pos D-SUB - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 969M101-28-8
    Cable Length (ft) Part Numbers Order Through
    3 969M101-28-8-CA003 Cicoil
    6 969M101-28-8-CA006 Cicoil
    12 969M101-28-8-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    5
    12K
    10
    969M101-28-10
    Details

    Bulk Cable

    • Amp Rating: 5
    • Volts DC: 12K
    • No. of Conductors: 10
    • Conductor Gauge: 28 AWG
    • A - Width (inches): 0.53
    • B - Height (inches): 0.08
    969M101-28-10
    Part Numbers Order Through
    969M101-28-10 Digi-Key

    Complete Assemblies

    Signal (J1): 25-Pos D-SUB - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 969M101-28-10
    Cable Length (ft) Part Numbers Order Through
    3 969M101-28-10-CA003 Cicoil
    6 969M101-28-10-CA006 Cicoil
    12 969M101-28-10-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    6
    12K
    2
    969M101-26-2
    Details

    Bulk Cable

    • Amp Rating: 6
    • Volts DC: 12K
    • No. of Conductors: 2
    • Conductor Gauge: 26 AWG
    • A - Width (inches): 0.14
    • B - Height (inches): 0.09
    969M101-26-2
    Part Numbers Order Through
    969M101-26-2 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-26-2
    Cable Length (ft) Part Numbers Order Through
    3 969M101-26-2-CA003 Cicoil
    6 969M101-26-2-CA006 Cicoil
    12 969M101-26-2-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    6
    12K
    3
    969M101-26-3
    Details

    Bulk Cable

    • Amp Rating: 6
    • Volts DC: 12K
    • No. of Conductors: 3
    • Conductor Gauge: 26 AWG
    • A - Width (inches): 0.19
    • B - Height (inches): 0.09
    969M101-26-3
    Part Numbers Order Through
    969M101-26-3 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-26-3
    Cable Length (ft) Part Numbers Order Through
    3 969M101-26-3-CA003 Cicoil
    6 969M101-26-3-CA006 Cicoil
    12 969M101-26-3-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    6
    12K
    4
    969M101-26-4
    Details

    Bulk Cable

    • Amp Rating: 6
    • Volts DC: 12K
    • No. of Conductors: 4
    • Conductor Gauge: 26 AWG
    • A - Width (inches): 0.25
    • B - Height (inches): 0.09
    969M101-26-4
    Part Numbers Order Through
    969M101-26-4 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-26-4
    Cable Length (ft) Part Numbers Order Through
    3 969M101-26-4-CA003 Cicoil
    6 969M101-26-4-CA006 Cicoil
    12 969M101-26-4-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    6
    12K
    6
    969M101-26-6
    Details

    Bulk Cable

    • Amp Rating: 6
    • Volts DC: 12K
    • No. of Conductors: 6
    • Conductor Gauge: 26 AWG
    • A - Width (inches): 0.35
    • B - Height (inches): 0.09
    969M101-26-6
    Part Numbers Order Through
    969M101-26-6 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-26-6
    Cable Length (ft) Part Numbers Order Through
    3 969M101-26-6-CA003 Cicoil
    6 969M101-26-6-CA006 Cicoil
    12 969M101-26-6-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    6
    12K
    8
    969M101-26-8
    Details

    Bulk Cable

    • Amp Rating: 6
    • Volts DC: 12K
    • No. of Conductors: 8
    • Conductor Gauge: 26 AWG
    • A - Width (inches): 0.46
    • B - Height (inches): 0.09
    969M101-26-8
    Part Numbers Order Through
    969M101-26-8 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-26-8
    Cable Length (ft) Part Numbers Order Through
    3 969M101-26-8-CA003 Cicoil
    6 969M101-26-8-CA006 Cicoil
    12 969M101-26-8-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    6
    12K
    10
    969M101-26-10
    Details

    Bulk Cable

    • Amp Rating: 6
    • Volts DC: 12K
    • No. of Conductors: 10
    • Conductor Gauge: 26 AWG
    • A - Width (inches): 0.57
    • B - Height (inches): 0.09
    969M101-26-10
    Part Numbers Order Through
    969M101-26-10 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-26-10
    Cable Length (ft) Part Numbers Order Through
    3 969M101-26-10-CA003 Cicoil
    6 969M101-26-10-CA006 Cicoil
    12 969M101-26-10-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    8
    12K
    2
    969M101-24-2
    Details

    Bulk Cable

    • Amp Rating: 8
    • Volts DC: 12K
    • No. of Conductors: 2
    • Conductor Gauge: 24 AWG
    • A - Width (inches): 0.15
    • B - Height (inches): 0.10
    969M101-24-2
    Part Numbers Order Through
    969M101-24-2 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-24-2
    Cable Length (ft) Part Numbers Order Through
    3 969M101-24-2-CA003 Cicoil
    6 969M101-24-2-CA006 Cicoil
    12 969M101-24-2-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    8
    12K
    3
    969M101-24-3
    Details

    Bulk Cable

    • Amp Rating: 8
    • Volts DC: 12K
    • No. of Conductors: 3
    • Conductor Gauge: 24 AWG
    • A - Width (inches): 0.21
    • B - Height (inches): 0.10
    969M101-24-3
    Part Numbers Order Through
    969M101-24-3 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-24-3
    Cable Length (ft) Part Numbers Order Through
    3 969M101-24-3-CA003 Cicoil
    6 969M101-24-3-CA006 Cicoil
    12 969M101-24-3-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    8
    12K
    4
    969M101-24-4
    Details

    Bulk Cable

    • Amp Rating: 8
    • Volts DC: 12K
    • No. of Conductors: 4
    • Conductor Gauge: 24 AWG
    • A - Width (inches): 0.27
    • B - Height (inches): 0.10
    969M101-24-4
    Part Numbers Order Through
    969M101-24-4 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-24-4
    Cable Length (ft) Part Numbers Order Through
    3 969M101-24-4-CA003 Cicoil
    6 969M101-24-4-CA006 Cicoil
    12 969M101-24-4-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    8
    12K
    6
    969M101-24-6
    Details

    Bulk Cable

    • Amp Rating: 8
    • Volts DC: 12K
    • No. of Conductors: 6
    • Conductor Gauge: 24 AWG
    • A - Width (inches): 0.38
    • B - Height (inches): 0.10
    969M101-24-6
    Part Numbers Order Through
    969M101-24-6 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-24-6
    Cable Length (ft) Part Numbers Order Through
    3 969M101-24-6-CA003 Cicoil
    6 969M101-24-6-CA006 Cicoil
    12 969M101-24-6-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    8
    12K
    8
    969M101-24-8
    Details

    Bulk Cable

    • Amp Rating: 8
    • Volts DC: 12K
    • No. of Conductors: 8
    • Conductor Gauge: 24 AWG
    • A - Width (inches): 0.50
    • B - Height (inches): 0.10
    969M101-24-8
    Part Numbers Order Through
    969M101-24-8 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-24-8
    Cable Length (ft) Part Numbers Order Through
    3 969M101-24-8-CA003 Cicoil
    6 969M101-24-8-CA006 Cicoil
    12 969M101-24-8-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    8
    12K
    10
    969M101-24-10
    Details

    Bulk Cable

    • Amp Rating: 8
    • Volts DC: 12K
    • No. of Conductors: 10
    • Conductor Gauge: 24 AWG
    • A - Width (inches): 0.62
    • B - Height (inches): 0.10
    969M101-24-10
    Part Numbers Order Through
    969M101-24-10 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-24-10
    Cable Length (ft) Part Numbers Order Through
    3 969M101-24-10-CA003 Cicoil
    6 969M101-24-10-CA006 Cicoil
    12 969M101-24-10-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    8
    12K
    12
    969M101-24-12
    Details

    Bulk Cable

    • Amp Rating: 8
    • Volts DC: 12K
    • No. of Conductors: 12
    • Conductor Gauge: 24 AWG
    • A - Width (inches): 0.74
    • B - Height (inches): 0.10
    969M101-24-12
    Part Numbers Order Through
    969M101-24-12 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-24-12
    Cable Length (ft) Part Numbers Order Through
    3 969M101-24-12-CA003 Cicoil
    6 969M101-24-12-CA006 Cicoil
    12 969M101-24-12-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    11
    18K
    2
    969M101-22-2
    Details

    Bulk Cable

    • Amp Rating: 11
    • Volts DC: 18K
    • No. of Conductors: 2
    • Conductor Gauge: 22 AWG
    • A - Width (inches): 0.18
    • B - Height (inches): 0.11
    969M101-22-2
    Part Numbers Order Through
    969M101-22-2 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-22-2
    Cable Length (ft) Part Numbers Order Through
    3 969M101-22-2-CA003 Cicoil
    6 969M101-22-2-CA006 Cicoil
    12 969M101-22-2-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    11
    18K
    3
    969M101-22-3
    Details

    Bulk Cable

    • Amp Rating: 11
    • Volts DC: 18K
    • No. of Conductors: 3
    • Conductor Gauge: 22 AWG
    • A - Width (inches): 0.25
    • B - Height (inches): 0.11
    969M101-22-3
    Part Numbers Order Through
    969M101-22-3 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-22-3
    Cable Length (ft) Part Numbers Order Through
    3 969M101-22-3-CA003 Cicoil
    6 969M101-22-3-CA006 Cicoil
    12 969M101-22-3-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    11
    18K
    4
    969M101-22-4
    Details

    Bulk Cable

    • Amp Rating: 11
    • Volts DC: 18K
    • No. of Conductors: 4
    • Conductor Gauge: 22 AWG
    • A - Width (inches): 0.32
    • B - Height (inches): 0.11
    969M101-22-4
    Part Numbers Order Through
    969M101-22-4 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-22-4
    Cable Length (ft) Part Numbers Order Through
    3 969M101-22-4-CA003 Cicoil
    6 969M101-22-4-CA006 Cicoil
    12 969M101-22-4-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    11
    18K
    6
    969M101-22-6
    Details

    Bulk Cable

    • Amp Rating: 11
    • Volts DC: 18K
    • No. of Conductors: 6
    • Conductor Gauge: 22 AWG
    • A - Width (inches): 0.45
    • B - Height (inches): 0.11
    969M101-22-6
    Part Numbers Order Through
    969M101-22-6 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-22-6
    Cable Length (ft) Part Numbers Order Through
    3 969M101-22-6-CA003 Cicoil
    6 969M101-22-6-CA006 Cicoil
    12 969M101-22-6-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    11
    18K
    8
    969M101-22-8
    Details

    Bulk Cable

    • Amp Rating: 11
    • Volts DC: 18K
    • No. of Conductors: 8
    • Conductor Gauge: 22 AWG
    • A - Width (inches): 0.59
    • B - Height (inches): 0.11
    969M101-22-8
    Part Numbers Order Through
    969M101-22-8 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-22-8
    Cable Length (ft) Part Numbers Order Through
    3 969M101-22-8-CA003 Cicoil
    6 969M101-22-8-CA006 Cicoil
    12 969M101-22-8-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    11
    18K
    10
    969M101-22-10
    Details

    Bulk Cable

    • Amp Rating: 11
    • Volts DC: 18K
    • No. of Conductors: 10
    • Conductor Gauge: 22 AWG
    • A - Width (inches): 0.73
    • B - Height (inches): 0.11
    969M101-22-10
    Part Numbers Order Through
    969M101-22-10 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-22-10
    Cable Length (ft) Part Numbers Order Through
    3 969M101-22-10-CA003 Cicoil
    6 969M101-22-10-CA006 Cicoil
    12 969M101-22-10-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    11
    18K
    12
    969M101-22-12
    Details

    Bulk Cable

    • Amp Rating: 11
    • Volts DC: 18K
    • No. of Conductors: 12
    • Conductor Gauge: 22 AWG
    • A - Width (inches): 0.87
    • B - Height (inches): 0.11
    969M101-22-12
    Part Numbers Order Through
    969M101-22-12 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-22-12
    Cable Length (ft) Part Numbers Order Through
    3 969M101-22-12-CA003 Cicoil
    6 969M101-22-12-CA006 Cicoil
    12 969M101-22-12-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    13
    18K
    2
    969M101-20-2
    Details

    Bulk Cable

    • Amp Rating: 13
    • Volts DC: 18K
    • No. of Conductors: 2
    • Conductor Gauge: 20 AWG
    • A - Width (inches): 0.20
    • B - Height (inches): 0.12
    969M101-20-2
    Part Numbers Order Through
    969M101-20-2 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-20-2
    Cable Length (ft) Part Numbers Order Through
    3 969M101-20-2-CA003 Cicoil
    6 969M101-20-2-CA006 Cicoil
    12 969M101-20-2-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    13
    18K
    3
    969M101-20-3
    Details

    Bulk Cable

    • Amp Rating: 13
    • Volts DC: 18K
    • No. of Conductors: 3
    • Conductor Gauge: 20 AWG
    • A - Width (inches): 0.28
    • B - Height (inches): 0.12
    969M101-20-3
    Part Numbers Order Through
    969M101-20-3 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-20-3
    Cable Length (ft) Part Numbers Order Through
    3 969M101-20-3-CA003 Cicoil
    6 969M101-20-3-CA006 Cicoil
    12 969M101-20-3-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    13
    18K
    4
    969M101-20-4
    Details

    Bulk Cable

    • Amp Rating: 13
    • Volts DC: 18K
    • No. of Conductors: 4
    • Conductor Gauge: 20 AWG
    • A - Width (inches): 0.36
    • B - Height (inches): 0.12
    969M101-20-4
    Part Numbers Order Through
    969M101-20-4 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-20-4
    Cable Length (ft) Part Numbers Order Through
    3 969M101-20-4-CA003 Cicoil
    6 969M101-20-4-CA006 Cicoil
    12 969M101-20-4-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    13
    18K
    6
    969M101-20-6
    Details

    Bulk Cable

    • Amp Rating: 13
    • Volts DC: 18K
    • No. of Conductors: 6
    • Conductor Gauge: 20 AWG
    • A - Width (inches): 0.51
    • B - Height (inches): 0.12
    969M101-20-6
    Part Numbers Order Through
    969M101-20-6 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-20-6
    Cable Length (ft) Part Numbers Order Through
    3 969M101-20-6-CA003 Cicoil
    6 969M101-20-6-CA006 Cicoil
    12 969M101-20-6-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    13
    18K
    8
    969M101-20-8
    Details

    Bulk Cable

    • Amp Rating: 13
    • Volts DC: 18K
    • No. of Conductors: 8
    • Conductor Gauge: 20 AWG
    • A - Width (inches): 0.67
    • B - Height (inches): 0.12
    969M101-20-8
    Part Numbers Order Through
    969M101-20-8 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-20-8
    Cable Length (ft) Part Numbers Order Through
    3 969M101-20-8-CA003 Cicoil
    6 969M101-20-8-CA006 Cicoil
    12 969M101-20-8-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    13
    18K
    10
    969M101-20-10
    Details

    Bulk Cable

    • Amp Rating: 13
    • Volts DC: 18K
    • No. of Conductors: 10
    • Conductor Gauge: 20 AWG
    • A - Width (inches): 0.83
    • B - Height (inches): 0.12
    969M101-20-10
    Part Numbers Order Through
    969M101-20-10 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-20-10
    Cable Length (ft) Part Numbers Order Through
    3 969M101-20-10-CA003 Cicoil
    6 969M101-20-10-CA006 Cicoil
    12 969M101-20-10-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    13
    18K
    12
    969M101-20-12
    Details

    Bulk Cable

    • Amp Rating: 13
    • Volts DC: 18K
    • No. of Conductors: 12
    • Conductor Gauge: 20 AWG
    • A - Width (inches): 0.99
    • B - Height (inches): 0.12
    969M101-20-12
    Part Numbers Order Through
    969M101-20-12 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-20-12
    Cable Length (ft) Part Numbers Order Through
    3 969M101-20-12-CA003 Cicoil
    6 969M101-20-12-CA006 Cicoil
    12 969M101-20-12-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    20
    20K
    2
    969M101-18-2
    Details

    Bulk Cable

    • Amp Rating: 20
    • Volts DC: 20K
    • No. of Conductors: 2
    • Conductor Gauge: 18 AWG
    • A - Width (inches): 0.24
    • B - Height (inches): 0.14
    969M101-18-2
    Part Numbers Order Through
    969M101-18-2 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-18-2
    Cable Length (ft) Part Numbers Order Through
    3 969M101-18-2-CA003 Cicoil
    6 969M101-18-2-CA006 Cicoil
    12 969M101-18-2-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    20
    20K
    3
    969M101-18-3
    Details

    Bulk Cable

    • Amp Rating: 20
    • Volts DC: 20K
    • No. of Conductors: 3
    • Conductor Gauge: 18 AWG
    • A - Width (inches): 0.33
    • B - Height (inches): 0.14
    969M101-18-3
    Part Numbers Order Through
    969M101-18-3 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-18-3
    Cable Length (ft) Part Numbers Order Through
    3 969M101-18-3-CA003 Cicoil
    6 969M101-18-3-CA006 Cicoil
    12 969M101-18-3-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    20
    20K
    4
    969M101-18-4
    Details

    Bulk Cable

    • Amp Rating: 20
    • Volts DC: 20K
    • No. of Conductors: 4
    • Conductor Gauge: 18 AWG
    • A - Width (inches): 0.43
    • B - Height (inches): 0.14
    969M101-18-4
    Part Numbers Order Through
    969M101-18-4 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-18-4
    Cable Length (ft) Part Numbers Order Through
    3 969M101-18-4-CA003 Cicoil
    6 969M101-18-4-CA006 Cicoil
    12 969M101-18-4-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    20
    20K
    6
    969M101-18-6
    Details

    Bulk Cable

    • Amp Rating: 20
    • Volts DC: 20K
    • No. of Conductors: 6
    • Conductor Gauge: 18 AWG
    • A - Width (inches): 0.62
    • B - Height (inches): 0.14
    969M101-18-6
    Part Numbers Order Through
    969M101-18-6 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-18-6
    Cable Length (ft) Part Numbers Order Through
    3 969M101-18-6-CA003 Cicoil
    6 969M101-18-6-CA006 Cicoil
    12 969M101-18-6-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    20
    20K
    8
    969M101-18-8
    Details

    Bulk Cable

    • Amp Rating: 20
    • Volts DC: 20K
    • No. of Conductors: 8
    • Conductor Gauge: 18 AWG
    • A - Width (inches): 0.81
    • B - Height (inches): 0.14
    969M101-18-8
    Part Numbers Order Through
    969M101-18-8 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-18-8
    Cable Length (ft) Part Numbers Order Through
    3 969M101-18-8-CA003 Cicoil
    6 969M101-18-8-CA006 Cicoil
    12 969M101-18-8-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    20
    20K
    10
    969M101-18-10
    Details

    Bulk Cable

    • Amp Rating: 20
    • Volts DC: 20K
    • No. of Conductors: 10
    • Conductor Gauge: 18 AWG
    • A - Width (inches): 1.00
    • B - Height (inches): 0.14
    969M101-18-10
    Part Numbers Order Through
    969M101-18-10 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-18-10
    Cable Length (ft) Part Numbers Order Through
    3 969M101-18-10-CA003 Cicoil
    6 969M101-18-10-CA006 Cicoil
    12 969M101-18-10-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    20
    20K
    12
    969M101-18-12
    Details

    Bulk Cable

    • Amp Rating: 20
    • Volts DC: 20K
    • No. of Conductors: 12
    • Conductor Gauge: 18 AWG
    • A - Width (inches): 1.19
    • B - Height (inches): 0.14
    969M101-18-12
    Part Numbers Order Through
    969M101-18-12 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-18-12
    Cable Length (ft) Part Numbers Order Through
    3 969M101-18-12-CA003 Cicoil
    6 969M101-18-12-CA006 Cicoil
    12 969M101-18-12-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    26
    20K
    2
    969M101-16-2
    Details

    Bulk Cable

    • Amp Rating: 26
    • Volts DC: 20K
    • No. of Conductors: 2
    • Conductor Gauge: 16 AWG
    • A - Width (inches): 0.26
    • B - Height (inches): 0.15
    969M101-16-2
    Part Numbers Order Through
    969M101-16-2 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-16-2
    Cable Length (ft) Part Numbers Order Through
    3 969M101-16-2-CA003 Cicoil
    6 969M101-16-2-CA006 Cicoil
    12 969M101-16-2-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    26
    20K
    3
    969M101-16-3
    Details

    Bulk Cable

    • Amp Rating: 26
    • Volts DC: 20K
    • No. of Conductors: 3
    • Conductor Gauge: 16 AWG
    • A - Width (inches): 0.37
    • B - Height (inches): 0.15
    969M101-16-3
    Part Numbers Order Through
    969M101-16-3 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-16-3
    Cable Length (ft) Part Numbers Order Through
    3 969M101-16-3-CA003 Cicoil
    6 969M101-16-3-CA006 Cicoil
    12 969M101-16-3-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    26
    20K
    4
    969M101-16-4
    Details

    Bulk Cable

    • Amp Rating: 26
    • Volts DC: 20K
    • No. of Conductors: 4
    • Conductor Gauge: 16 AWG
    • A - Width (inches): 0.48
    • B - Height (inches): 0.15
    969M101-16-4
    Part Numbers Order Through
    969M101-16-4 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-16-4
    Cable Length (ft) Part Numbers Order Through
    3 969M101-16-4-CA003 Cicoil
    6 969M101-16-4-CA006 Cicoil
    12 969M101-16-4-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    26
    20K
    6
    969M101-16-6
    Details

    Bulk Cable

    • Amp Rating: 26
    • Volts DC: 20K
    • No. of Conductors: 6
    • Conductor Gauge: 16 AWG
    • A - Width (inches): 0.70
    • B - Height (inches): 0.15
    969M101-16-6
    Part Numbers Order Through
    969M101-16-6 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-16-6
    Cable Length (ft) Part Numbers Order Through
    3 969M101-16-6-CA003 Cicoil
    6 969M101-16-6-CA006 Cicoil
    12 969M101-16-6-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    26
    20K
    8
    969M101-16-8
    Details

    Bulk Cable

    • Amp Rating: 26
    • Volts DC: 20K
    • No. of Conductors: 8
    • Conductor Gauge: 16 AWG
    • A - Width (inches): 0.92
    • B - Height (inches): 0.15
    969M101-16-8
    Part Numbers Order Through
    969M101-16-8 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-16-8
    Cable Length (ft) Part Numbers Order Through
    3 969M101-16-8-CA003 Cicoil
    6 969M101-16-8-CA006 Cicoil
    12 969M101-16-8-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    26
    20K
    10
    969M101-16-10
    Details

    Bulk Cable

    • Amp Rating: 26
    • Volts DC: 20K
    • No. of Conductors: 10
    • Conductor Gauge: 16 AWG
    • A - Width (inches): 1.14
    • B - Height (inches): 0.15
    969M101-16-10
    Part Numbers Order Through
    969M101-16-10 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-16-10
    Cable Length (ft) Part Numbers Order Through
    3 969M101-16-10-CA003 Cicoil
    6 969M101-16-10-CA006 Cicoil
    12 969M101-16-10-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    26
    20K
    12
    969M101-16-12
    Details

    Bulk Cable

    • Amp Rating: 26
    • Volts DC: 20K
    • No. of Conductors: 12
    • Conductor Gauge: 16 AWG
    • A - Width (inches): 1.36
    • B - Height (inches): 0.15
    969M101-16-12
    Part Numbers Order Through
    969M101-16-12 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-16-12
    Cable Length (ft) Part Numbers Order Through
    3 969M101-16-12-CA003 Cicoil
    6 969M101-16-12-CA006 Cicoil
    12 969M101-16-12-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    27
    20K
    3
    969M101-14-3
    Details

    Bulk Cable

    • Amp Rating: 27
    • Volts DC: 20K
    • No. of Conductors: 3
    • Conductor Gauge: 14 AWG
    • A - Width (inches): 0.47
    • B - Height (inches): 0.19
    969M101-14-3
    Part Numbers Order Through
    969M101-14-3 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-14-3
    Cable Length (ft) Part Numbers Order Through
    3 969M101-14-3-CA003 Cicoil
    6 969M101-14-3-CA006 Cicoil
    12 969M101-14-3-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    27
    20K
    4
    969M101-14-4
    Details

    Bulk Cable

    • Amp Rating: 27
    • Volts DC: 20K
    • No. of Conductors: 4
    • Conductor Gauge: 14 AWG
    • A - Width (inches): 0.61
    • B - Height (inches): 0.19
    969M101-14-4
    Part Numbers Order Through
    969M101-14-4 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-14-4
    Cable Length (ft) Part Numbers Order Through
    3 969M101-14-4-CA003 Cicoil
    6 969M101-14-4-CA006 Cicoil
    12 969M101-14-4-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    27
    3K
    1
    969M101-14-8
    Details

    Bulk Cable

    • Amp Rating: 27
    • Volts DC: 3K
    • No. of Conductors: 1
    • Conductor Gauge: 14 AWG
    • A - Width (inches): 1.16
    • B - Height (inches): 0.19
    969M101-14-8
    Part Numbers Order Through
    969M101-14-8 Digi-Key

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 969M101-14-8
    Cable Length (ft) Part Numbers Order Through
    3 969M101-14-8-CA003 Cicoil
    6 969M101-14-8-CA006 Cicoil
    12 969M101-14-8-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    36
    20K
    3
    969M101-12-3
    Details

    Bulk Cable

    • Amp Rating: 36
    • Volts DC: 20K
    • No. of Conductors: 3
    • Conductor Gauge: 12 AWG
    • A - Width (inches): 0.58
    • B - Height (inches): 0.24
    969M101-12-3
    Part Numbers Order Through
    969M101-12-3 Digi-Key

    Complete Assemblies

    Signal (J1): Ring Lugs - Typical 969M101-12-3
    Cable Length (ft) Part Numbers Order Through
    3 969M101-12-3-CA003 Cicoil
    6 969M101-12-3-CA006 Cicoil
    12 969M101-12-3-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    36
    20K
    4
    969M101-12-4
    Details

    Bulk Cable

    • Amp Rating: 36
    • Volts DC: 20K
    • No. of Conductors: 4
    • Conductor Gauge: 12 AWG
    • A - Width (inches): 0.75
    • B - Height (inches): 0.24
    969M101-12-4
    Part Numbers Order Through
    969M101-12-4 Digi-Key

    Complete Assemblies

    Signal (J1): Ring Lugs - Typical 969M101-12-4
    Cable Length (ft) Part Numbers Order Through
    3 969M101-12-4-CA003 Digi-Key
    6 969M101-12-4-CA006 Digi-Key
    12 969M101-12-4-CA012 Digi-Key

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    47
    20K
    4
    969M101-10-4
    Details

    Bulk Cable

    • Amp Rating: 47
    • Volts DC: 20K
    • No. of Conductors: 4
    • Conductor Gauge: 10 AWG
    • A - Width (inches): 0.92
    • B - Height (inches): 0.29
    969M101-10-4
    Part Numbers Order Through
    969M101-10-4 Digi-Key

    Complete Assemblies

    Signal (J1): Ring Lugs - Typical 969M101-10-4
    Cable Length (ft) Part Numbers Order Through
    3 969M101-10-4-CA003 Cicoil
    6 969M101-10-4-CA006 Cicoil
    12 969M101-10-4-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    65
    20K
    4
    969M101-8-4
    Details

    Bulk Cable

    • Amp Rating: 65
    • Volts DC: 20K
    • No. of Conductors: 4
    • Conductor Gauge: 8 AWG
    • A - Width (inches): 1.17
    • B - Height (inches): 0.35
    969M101-8-4
    Part Numbers Order Through
    969M101-8-4 Digi-Key

    Complete Assemblies

    Signal (J1): Ring Lugs - Typical 969M101-8-4
    Cable Length (ft) Part Numbers Order Through
    3 969M101-8-4-CA003 Cicoil
    6 969M101-8-4-CA006 Cicoil
    12 969M101-8-4-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    95
    20K
    4
    969M101-6-4
    Details

    Bulk Cable

    • Amp Rating: 95
    • Volts DC: 20K
    • No. of Conductors: 4
    • Conductor Gauge: 6 AWG
    • A - Width (inches): 1.47
    • B - Height (inches): 1.64
    969M101-6-4
    Part Numbers Order Through
    969M101-6-4 Digi-Key

    Complete Assemblies

    Signal (J1): Ring Lugs - Typical 969M101-6-4
    Cable Length (ft) Part Numbers Order Through
    3 969M101-6-4-CA003 Cicoil
    6 969M101-6-4-CA006 Cicoil
    12 969M101-6-4-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    125
    20K
    4
    969M101-4-4
    Details

    Bulk Cable

    • Amp Rating: 125
    • Volts DC: 20K
    • No. of Conductors: 4
    • Conductor Gauge: 4 AWG
    • A - Width (inches): 1.64
    • B - Height (inches): 0.47
    969M101-4-4
    Part Numbers Order Through
    969M101-4-4 Digi-Key

    Complete Assemblies

    Signal (J1): Ring Lugs - Typical 969M101-4-4
    Cable Length (ft) Part Numbers Order Through
    3 969M101-4-4-CA003 Cicoil
    6 969M101-4-4-CA006 Cicoil
    12 969M101-4-4-CA012 Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
